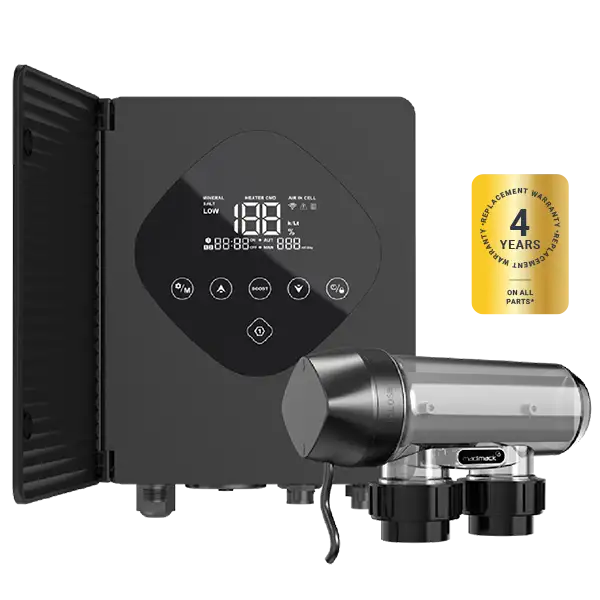

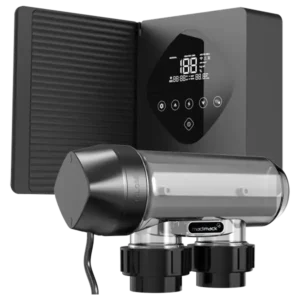

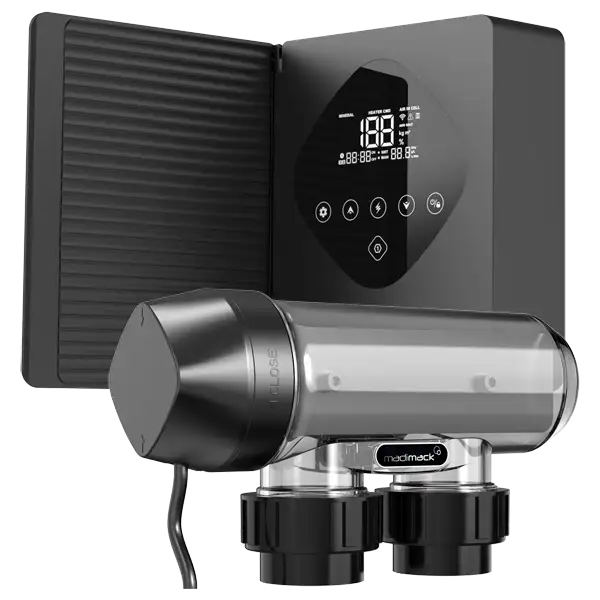

Madimack InverCHLOR 10 Salt & Mineral Pool Chlorinator 10gms – 15,000L
The Madimack InverCHLOR 10 is part of Madimack’s intelligent salt and mineral chlorinator range, built to keep water pure while reducing energy use and maintenance time. Combining inverter technology with precision control, this system produces chlorine efficiently across a wide salinity range (1200–6000 ppm), making it suitable for both traditional saltwater and mineral pools.
Engineered for smaller residential pools up to 15,000 litres, the InverCHLOR 10 features adaptive power output, modular installation and app connectivity for effortless management through the Madimack InverGo platform. The intelligent control system safeguards the cell, extending its lifespan beyond 10,000 hours.
For larger applications, the range also includes the InverCHLOR 20, 30, and 40 models, offering scalable chlorine output up to 40 g/hr. Each unit is constructed with the same precision engineering, inverter control and compatibility with Madimack’s optional pH Doser, ensuring balanced water chemistry and superior sanitisation efficiency.
InverCHLOR sets a new benchmark for low-maintenance pool care with smart alerts, Wi-Fi connectivity and synchronised operation with Madimack heat pumps. Whether you run a small backyard pool or an energy efficient mineral system, the InverCHLOR delivers consistent sanitisation and peace of mind year round.
Key Features of the Madimack inverCHLOR 10 Salt and Mineral Pool Chlorinator
Intelligent Control System – Automatically adjusts output to maintain clean water while extending cell life to over 10,000 hours
Low TDS Compatibility – Operates effectively with low salt or mineral concentrations (1200–6000 ppm) for softer, more comfortable water.
Adaptive Inverter Technology – Uses Madimack’s InverMAC system to optimise power usage and improve energy efficiency throughout the year.

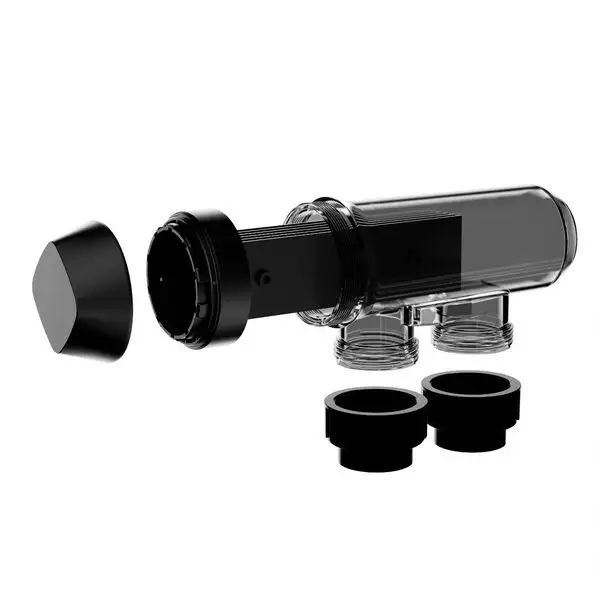

Modular Cell Design – Simplifies installation for new or existing pools, reducing maintenance and setup time.
App Connectivity – Monitor and adjust chlorination levels remotely via the InverGo App.
Smart Alerts – On-screen notifications for low salt, air detection, or maintenance reminders keep your system running smoothly.
Optional pH Doser Integration – Automated pH balancing for precise water management and reduced chemical consumption.

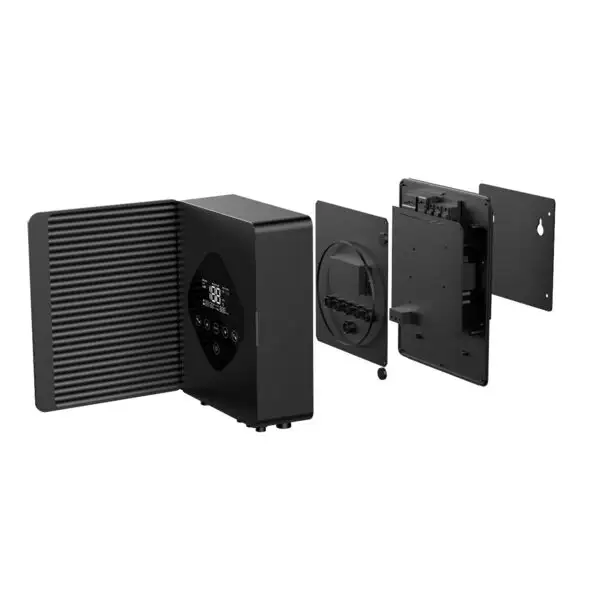

UV-Protected Casing & LCD Interface – Weather-resistant design with easy-to-read touchscreen for fast configuration.
Specifications for the Madimack inverCHLOR 10 Salt and Mineral Pool Chlorinator
| Model | InverCHLOR 10 | InverCHLOR 20 | InverCHLOR 30 | InverCHLOR 40 |
|---|---|---|---|---|

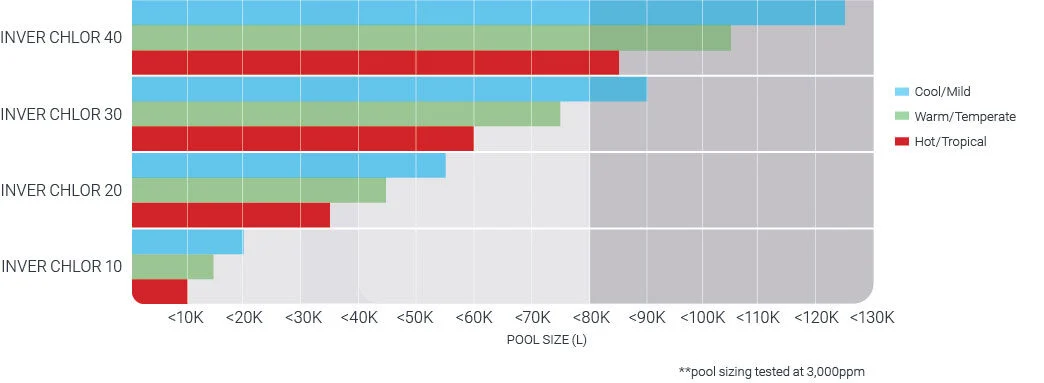

| Recommended Pool Size | Up to approx: 15,000 L | Up to approx: 45,000 L | Up to approx: 75,000 L | Up to approx: 115,000 L |
| Chlorine Output @ 3000 ppm | 10 g/hr | 20 g/hr | 30 g/hr | 40 g/hr |
| Chlorine Output @ 1200 ppm | 4 g/hr | 9 g/hr | 14 g/hr | 18 g/hr |
| Cell Current @ 3000 ppm | 4 A | 7 A | 11 A | 14 A |
| Cell Current @ 1200 ppm | 2.6 A | 4.6 A | 7 A | 8.4 A |
| Cell Voltage | 12 V DC | 12 V DC | 12 V DC | 12 V DC |
| Power Supply | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
| Maximum Input Power | 64 W | 104 W | 151 W | 197 W |
| Flow Rate | 80–400 L/min | 80–400 L/min | 80–400 L/min | 80–400 L/min |
| Salinity Range | 1200–6000 ppm | 1200–6000 ppm | 1200–6000 ppm | 1200–6000 ppm |
| Operating Temperature | –7°C to 42°C | –7°C to 42°C | –7°C to 42°C | –7°C to 42°C |
| Water Temperature Range | 5°C to 40°C | 5°C to 40°C | 5°C to 40°C | 5°C to 40°C |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Cell Life Expectancy | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
| Controller Dimensions (mm) | 327 × 117 × 150 | 327 × 117 × 150 | 327 × 117 × 150 | 327 × 117 × 150 |
| Cell Dimensions (mm) | 63*52 | 90*66 | 130*66 | 160*66 |
| Water Connections | 40 mm & 50 mm unions | 40 mm & 50 mm unions | 40 mm & 50 mm unions | 40 mm & 50 mm unions |
| Cell Housing Pressure | 450 kPa (4.5 Bar) | 450 kPa (4.5 Bar) | 450 kPa (4.5 Bar) | 450 kPa (4.5 Bar) |
| Cell Material | PETG (chemical-resistant polymer) | PETG (chemical-resistant polymer) | PETG (chemical-resistant polymer) | PETG (chemical-resistant polymer) |
| Warranty | 4-Year Replacement Warranty on All Parts | 4-Year Replacement Warranty on All Parts | 4-Year Replacement Warranty on All Parts | 4-Year Replacement Warranty on All Parts |

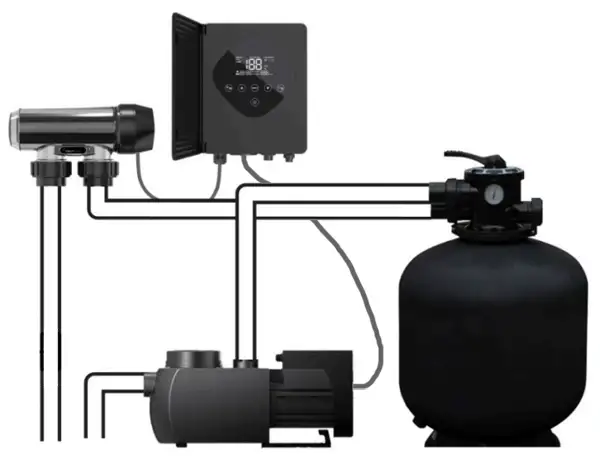

Installation Guide for the Madimack inverCHLOR 10 Salt and Mineral Pool Chlorinator
Choose the location: Mount the control unit on a wall near the filtration system, at least 3 metres from the pool water.
Prepare the plumbing: Install the cell housing horizontally as the final piece of equipment before the water returns to the pool.
Add salt or minerals: Ensure water balance and dissolve salt fully before powering on the unit (ideal 3000 ppm salt or 4200 ppm minerals).

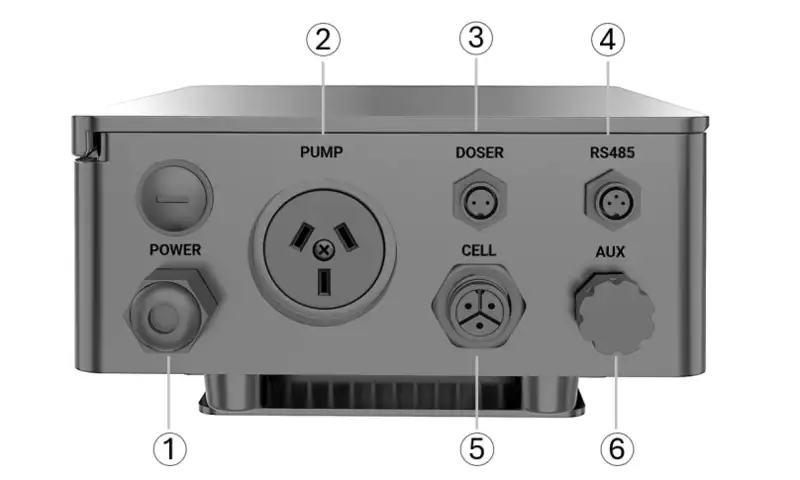

Set up controls: Configure clock, pool size, mode (Auto/Manual), and salt type via the touchscreen.
Optional pH Doser: Mount separately in a ventilated area using the supplied tubing and connector\
Maintenance Tips
Check salt or mineral levels monthly and top up as required.
Clean the chlorinator cell only when mineral scaling is visible.
Use diluted acid (10:1 water to acid) for safe cell cleaning.
Inspect cables, unions, and fittings regularly for corrosion or wear.
Lubricate O-rings and squeeze tubes every six months if using the pH Doser.
Replace squeeze tubes annually to ensure accurate dosing
What’s in the Box:
Madimack inverCHLOR 10 Salt and Mineral Pool Chlorinator

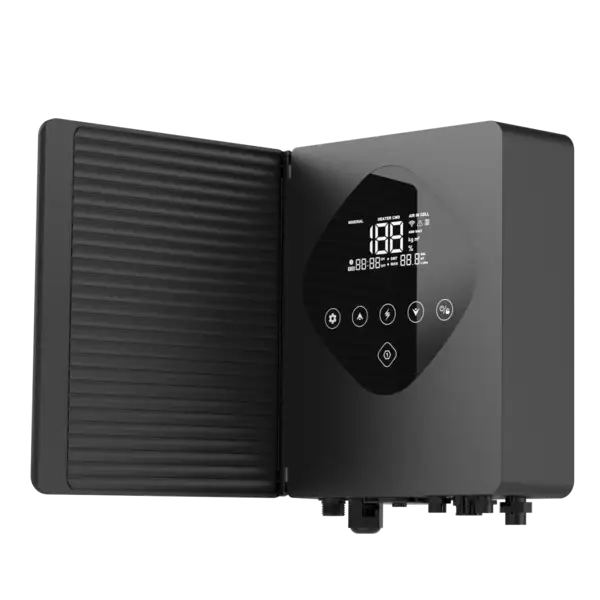

Madimack InverCHLOR 10 control unit

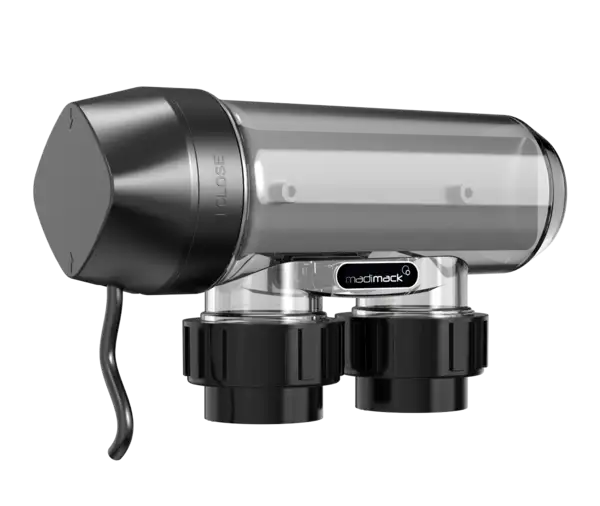

Electrolytic cell with unions (40/50mm)
Mounting bracket and hardware
Power cable
Heater control (AUX) cable
User manual and warranty documentation
